A 1968 block home gets a true zero-inch shower
Gulf Gate, Sarasota
Read it
Full remodel, roll-in ยท Jacaranda, Venice
A roll-in shower built around a toilet that could not move
The waste stack sat in the party wall, which fixed the toilet centre line permanently. Everything else in the room had to be designed around that one immovable point.
- Turning circle
- 60 in achieved
- Centre line moved
- 14 in to 17 in
- Clear door
- 32 in
- Shower
- 36 x 60 in roll-in

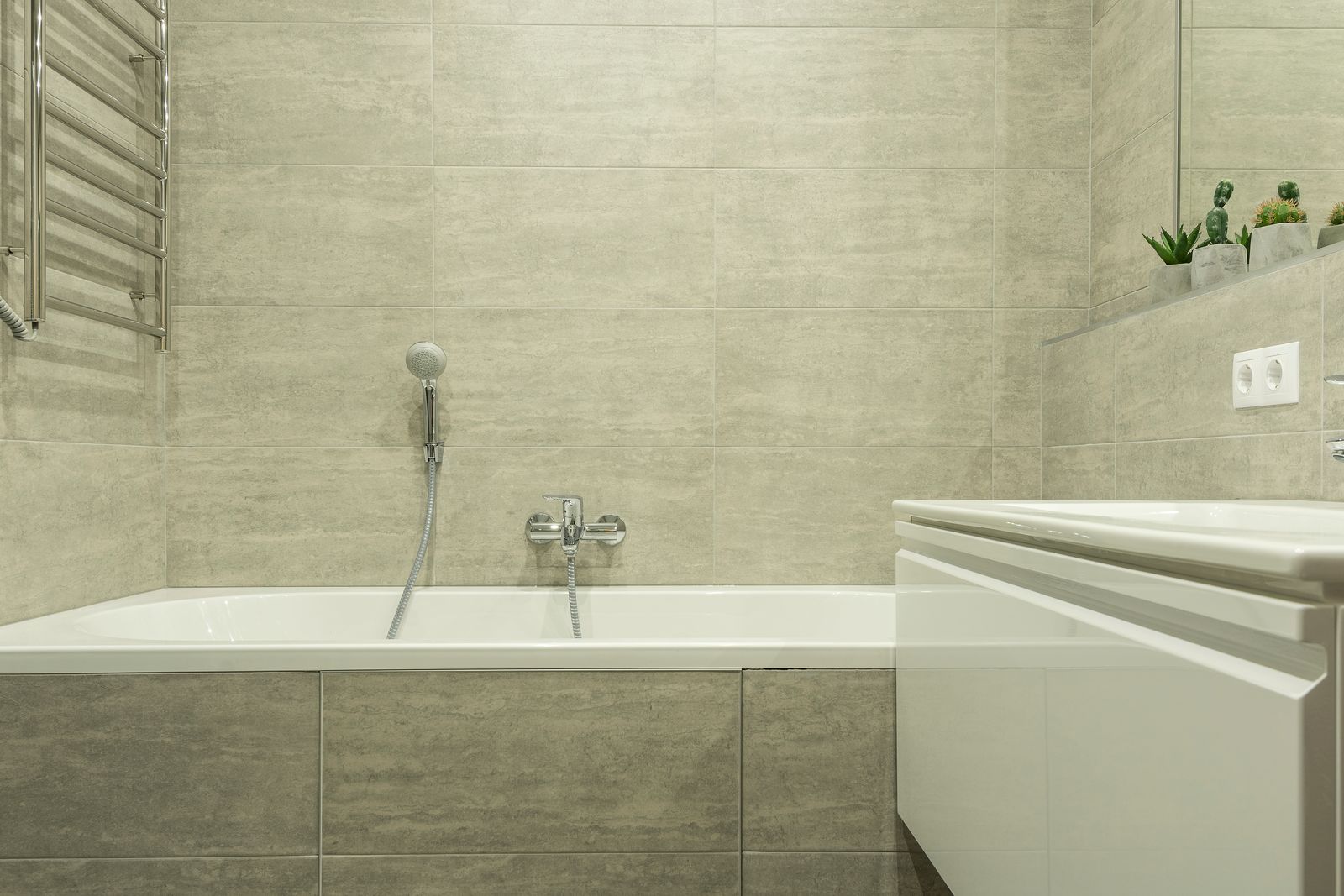

01Before and after
The room, either side of the work
- 8 x 9 ft villa bathroom with a linen closet eating the only turnable corner.
- Toilet centre line at 14 in from the side wall, too tight for a bar to be reachable.
- Tub alcove on the exterior wall, 15 in step-over.
- 30 in door with an inward swing.
- Linen closet removed, releasing a full 60 in turning circle in the centre of the room.
- Toilet stayed on its stack but the side wall was furred out 3 in to bring the centre line to 17 in.
- 36 x 60 in roll-in shower on the old tub footprint with a 36 in clear opening and no door.
- 42 in side bar and 36 in rear bar, both into new 2x10 flat blocking.
- Door widened to 32 in clear, swing reversed into the hallway.
- Wall-hung lavatory at 34 in with 27 in knee clearance and insulated drain lines.
02Timeline
How the days ran
14 working days on site. Sample budget $29,700 (sample figure).
- Days 1 to 2Demolition, linen closet out, floor opened
- Days 3 to 4Framing, wall furring, door widened, plumbing and electrical rough
- Day 5Three inspections in one visit
- Days 6 to 7Blocking, board, membrane, flood test
- Days 8 to 12Pan floated, tile set and grouted
- Days 13 to 14Fixtures, bars, lavatory, pull tests, punch list
03The customer
In their words
Three other contractors told me the toilet had to move and it would cost a fortune. Tidewell furred the wall out three inches instead and solved it.
